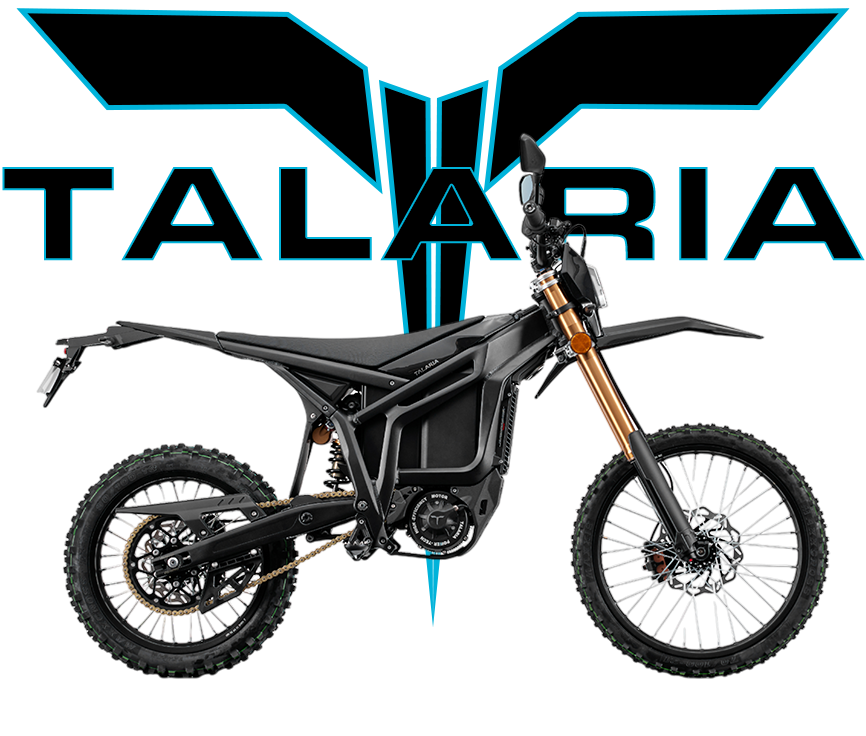

VEHICLE
Vehicle Dimensions 2,200 x 815 x 1,380mm (86 x 32 x 48 in)
Wheelbase 1380mm (52.3 in)
Seat Height 910mm (35.8 in)
Min. Ground Clearance 315mm (12.40 in)
Net Weight 98kg (216 lbs)
Max Load 160kg (353 lbs)
Braking Hydraulic Disc
Braking Efficiency 3.64 / 3.09 (m/s2)
Rim Size 1.6×21 / 2.15×18
Tire size (CST) 70/100-21 – 90/100-18
Tire size (Maxxis) 80/100-21 – 110/90-18
Fork Dual Chamber 850mm, 43 tube / Travel 250mm
Rear Shock 350mm travel / 90mm / 500-720 lbs spring
Min. Turning Radius 2.1 (m)
Steering Angle >45°
Forward Tilt Angle 26°
Nominal Voltage DC 97.2V
Maximum Speed 65mph
Peak Torque 754 Nm
Peak Power 32 Kw
Range (45 km/h) 115 km (71.5 miles)
Power Mode Eco / Sport / Hyper / Reverse
Battery Pack 97.2V 45AH
Battery Cells Samsung 50S 21700 / LG H51
Battery weight 24.5 kg (58 lbs)
Battery Protection Level IP67
Regenerative Braking 4-level adjustment
Display TFT 320 DPI / 167° angle
Motor type DC Permanent Magnet Synchronous
Mounting Position Mid-mounted
Motor Cooling Air-cooled
Motor Rated Torque >14 n.m
Motor Peak Torque >90 n.m
Motor Rated Power 8.6 Kw
Primary Transmission Gearbox
Drive Transmission 520 Chain
Front Sprocket 14/15T
Rear Sprocket 50/53T
